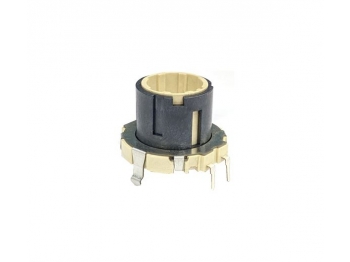

21mm 中空軸型編碼器

Introduction



Inquire Now

21mm 中空軸型編碼器

Features

  • ‧Provides high-level operation feeling.
  • ‧Hollow-center allows combination with other components.
  • APPLICATIONS
  • ‧Electronic control panel in cars or navigation equipment, professional mixers, and various audio-visual devices.
  • ‧Air conditioners, electronic toys, microwave ovens, rice cookers, flat panel TV, remote controllers and various electronics.

Specification

COMMON SPECIFICATIONS

Pulse Number of
detent
Phase difference
(msec)
Chattering (msec) Sliding noise
(msec)
Insulation resistance Dielectric strength Detent torque
(gfcm)
Rotational life (cycle)
9 18 13 8 3 250V DC
100MΩ MIN.
300V AC
1 min
70~170 50,000


PRODUCT NUMBERING SYSTEM


DIMENSIONS

Unit:mm
Model Dimensions
DC21H0920301
