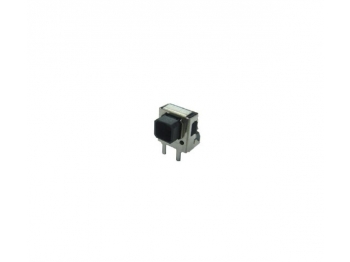

SFNSA

Introduction

SFNSA
DIP Type, 高度 2.7mm.
帶燈輕觸開關
/ TV / Monitor / Game Player / Instrument

FEATURE
‧Operating life：220gf：1x105 cycles.
‧Horizontal operaton.
‧Various LED colors.

APPLICATIONS
‧ For operating various electronic equipment such as audio devices、office equipment、communication devices、measuring instruments、TVs、video recorders etc.



Inquire Now

SFNSA

Features

Specification

COMMON SPECIFICATIONS

Characteristics Specification
Operating temperature range -25℃ to +70℃
Operating force 220gf
Travel 0.25mm
Dimension 7.2 * 6.8 * 7.7mm
Operating life 100,000 cycles
Stopper strength 2 Kgf / 60 sec
Maximum ratings DC12V 50mA
Insulation resistance 100MΩ min
Voltage proof 1 minute 250V AC

DIMENSIONS

Unit:mm
Model Dimensions
SFNSA SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension		 Circuit Diagram
