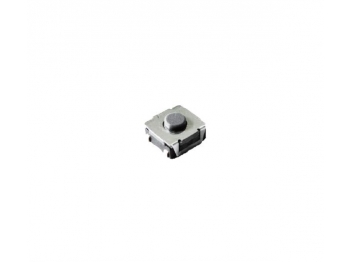

SFKRA

Features

  • SMT VERTICAL Type, 防水IP67
  • FEATURE
  • ‧6.2x6.2mm.
  • ‧J or G terminations.
  • ‧Long Travel type.
  • ‧Long operation cycles
  • ‧IP67
  • APPLICATIONS
  • ‧ For Automotive、Elevator、Cellular phones、Network infrastructure and IT、Industrial electronics etc.

Specification

COMMON SPECIFICATIONS

Characteristics Specification
Operating temperature range -20℃ to +70℃
Operating force 100、160、240、330gf
Travel 0.3~0.6mm
Dimension 6.2 *6.2mm
Operating life 200,000 cycles
Stopper strength 3 Kgf / 60 sec
Maximum ratings DC12V 50mA
Insulation resistance 100MΩ min
Voltage proof 1 minute 250V AC

DIMENSIONS

Unit:mm
SFKRAMJ SMT VERTICAL
J TYPE SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension		 Circuit Diagram
SFKRAMG SMT VERTICAL
G TYPE SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension		 Circuit Diagram
