SFKQD

Introduction



Inquire Now

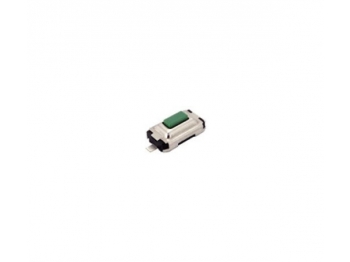

SFKQD

Features

  • SMT VERTICAL Type, 多種高度
  • 2.5mm、4.3mm.
  • FEATURE
  • ‧6.0x3.5mm, surface mounting type.
  • ‧Optional ground pin.
  • ‧Reflow solderable.
  • APPLICATIONS
  • ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

Specification

COMMON SPECIFICATIONS

Characteristics Specification
Operating temperature range -20℃ to +70℃
Operating force 100、160、260gf
Travel 0.25mm
Dimension 6.0 *3.5 * 6mm
Operating life 50,000 cycles
Stopper strength 3 Kgf / 60 sec
Maximum ratings DC12V 50mA
Insulation resistance 100MΩ min
Voltage proof 1 minute 250V AC

DIMENSIONS

Unit:mm
Model Dimensions
SFKQDMA SMT VERTICAL
SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension
Circuit Diagram
SFKQDMP SMT VERTICAL
WITH GROUND SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension
Circuit Diagram
