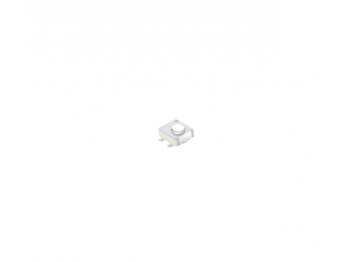

SFK(N)HD

Introduction



Inquire Now

SFK(N)HD

Features

  • SMT Type, 高度 2.8mm.帶燈開關
  • / TV / Monitor / Game Player / Instrument
  • FEATURE
  • ‧Super bright LED.
  • ‧Various LED colors.
  • APPLICATIONS
  • ‧ Server、Laptop、IPC、Set-top box etc.

Specification

COMMON SPECIFICATIONS

Characteristics Specification
Operating temperature range -20℃ to +70℃
Operating force 160gf
Travel 0.5mm
Dimension 6.0* 5.0 *2.8mm
Operating life 50,000 cycles
Stopper strength 3 Kgf / 60 sec
Maximum ratings DC12V 50mA
Insulation resistance 100MΩ min
Voltage proof 1 minute 250V AC

PRODUCTS NUMBERING SYSTEM

DIMENSIONS

Unit:mm
Model Dimensions
SFKHD SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension		 Circuit Diagram
