SFK(N)HC

Introduction



Inquire Now

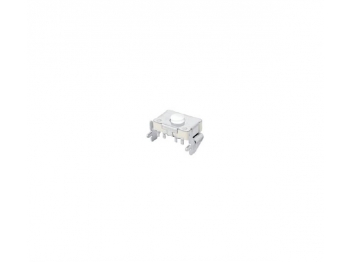

SFK(N)HC

Features

  • SMT Type,. 帶燈輕觸開關
  • / TV / Monitor / Game Player / Instrument
  • FEATURE
  • ‧Vertical/Horizontal operaton.
  • ‧Single unit with two colors LED.
  • ‧Red、green、blue and orange LED colors are available.
  • APPLICATIONS
  • ‧ For operating various electronic equipment such as audio devices、office equipment、communication devices、measuring instruments、TVs、video recorders etc.

Specification

COMMON SPECIFICATIONS

Characteristics Specification
Operating temperature range -20℃ to +70℃
Operating force 160gf
Travel 0.5mm
Dimension Vertical type:8.0*5.2*3.0mm / Horizontal type 9.3*5.3*3.55mm
Operating life 50,000 cycles
Stopper strength 3 Kgf / 60 sec
Maximum ratings DC12V 50mA
Insulation resistance 100MΩ min
Voltage proof 1 minute 250V AC

PRODUCTS NUMBERING SYSTEM

DIMENSIONS

Unit:mm
Model Dimensions
Vertical SERIES
SFKHCM
PC board t=1.0 or 1.6mm
Mounting Dimension
Circuit Diagram
Horizontal SERIES
SFKHCL
PC board t=1.0 or 1.6mm
Mounting Dimension
Circuit Diagram
