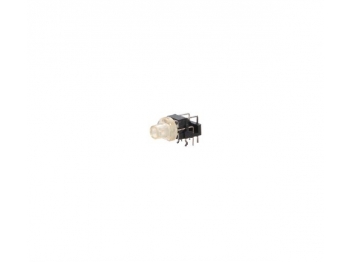

SFNHJL

Features

  • 帶燈輕觸開關
  • / TV / Monitor / Game Player / Instrument
  • FEATURE
  • ‧Horizontal operaton.
  • ‧Various LED colors.
  • ‧Options of different cap color & mark
  • APPLICATIONS
  • ‧ For operating various electronic equipment such as audio devices、office equipment、communication devices、measuring instruments、TVs、video recorders etc.

Specification

COMMON SPECIFICATIONS

Characteristics Specification
Operating temperature range -20℃ to +70℃
Operating force 160gf
Travel 0.25mm
Dimension 7.0 * 7.4 * 11.8mm
Operating life 100,000 cycles
Stopper strength 3 Kgf / 60 sec
Maximum ratings DC12V 50mA
Insulation resistance 100MΩ min
Voltage proof 1 minute 250V AC

DIMENSIONS

Unit:mm
Model Dimensions
SFNHJL SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension
Circuit Diagram
SFNHJL
WITH CAP SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension
Circuit Diagram
