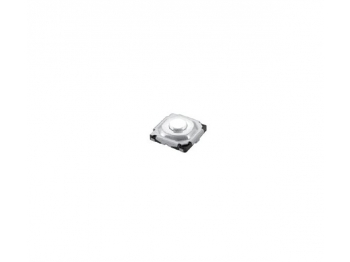

SFKQR
Features
Specification
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|---|
| Operating temperature range | -20℃ to +70℃ |
| Operating force | 100、160、260gf |
| Travel | 0.25mm |
| Dimension | 5.1 * 5.1 * 1.5mm |
| Operating life | 100,000 cycles |
| Maximum ratings | DC12V 50mA |
| Insulation resistance | 100MΩ min |
| Voltage proof | 1 minute 250V AC |
DIMENSIONS
Unit:mm
| Model | Dimensions | |
|---|---|---|
SFKQRMA SERIES |
 |
|
| PC board t=1.0 or 1.6mm Mounting Dimension |
Circuit Diagram | |
 |
 |
|
| SFKQRMP SERIES |
 |
|
| PC board t=1.0 or 1.6mm Mounting Dimension |
Circuit Diagram | |
 |
 |
|
SFKQRMB SERIES |
 |
|
| PC board t=1.0 or 1.6mm Mounting Dimension |
Circuit Diagram | |
|
|
|
| SFKQRMQ SERIES |
|
|
| PC board t=1.0 or 1.6mm Mounting Dimension |
Circuit Diagram | |
|
|
|
