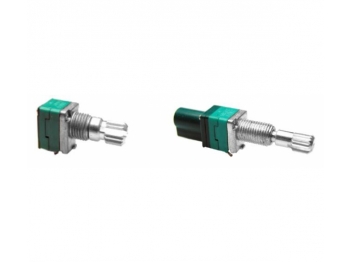

9mm 金屬軸迴轉式可變電阻器RD097
Features
Specification
FEATURE
‧Very small, only 9.5mm wide.‧Compact design. 6.5mm and 10mm high from P.C. board to shaft center.
‧Outset molding with resin around the resistor prevents flux build-up.
APPLICATIONS
‧Ideal for volume, tone and balance control of car audio equipment.
COMMON SPECIFICATIONS
| Characteristics | Specification | ||
| Total rotational angle | General | 300±5˚ | |
| Shaft moving type | 300+10˚/-5˚ | ||
| Rotational torque | 20~250gf.cm | ||
| Detent torque | center detent | Rotational torque+ ( 30~200) gf.cm | |
| 11.31.41 detent | 30~200gf.cm | ||
| Total resistance (KΩ) | 5.10.20,50,100,250.500 | ||
| Total resistance tolerance | ±20% | ||
| Rated power | 0.05W | ||
| Resistance taper | A,B,C,D,E,K,W,RD,M,N | ||
| Maximum operating Voltage | 50V AC | 10V DC | |
| Rotation life | 15,000 cycles | ||
| Push lock mechanism operating life | 10,000 cycles | ||
PRODUCT NUMBERING SYSTEM
DIMENSIONS OF SHAFT
DIMENSIONS
Unit:mm
| Single shaft, single unit RD0971110  |
 |
|
| Single shaft, single unit RD097111P  |
 |
|
| Single shaft, single unit RD09711H  |
 |
|
| Single shaft, dual unit RD0971210 (For tone) RD0971220 (For vol.)  |
 |
|
| Single shaft, dual unit RD097121P (For tone) RD097122P (For vol.)  |
 |
|
| Single shaft, dual unit RD09712H (For tone) RD09712C(For vol.)  |
 |
|
| Single shaft, single unit With push-lock mechanism RD097111T  |
 |
|
| Single shaft, single dual With push-lock mechanism RD097121T (for tone) RD097122T (For vol.)  |
 |
|
| Single shaft, quad unit RD0971410 (For tone) RD0971420 (For vol.)  |
 |
|
| Single shaft, quad unit With push-lock mechanism RD097141T (For tone) RD097142T (For vol.)  |
 |
|
| Dual shaft, dual unit RD097221  |
 |
|
| Dual shaft, quad unit RD0972410 (For tone) RD0972420 (For vol.)  |
 |
|
| Single shaft, single unit Rotary type - switch RD0971111-5R1211(SPST)  |
 |
|
| Single shaft, dual unit Rotary type - switch RD0971211-5R1211(SPST) RD0971221-5R1211(SPST)  |
 |
|
| Single shaft, single unit Push-push type - switch RD0971112-5R2412(SPDT) -5R2421 (DPST)  |
 |
|
| Single shaft, dual unit Push-push type - switch RD0971212-5R2412(SPDT) -5R2421 (DPST)  |
 |
|
| Single shaft, single unit Momentary push on type - switch Travel 1.5mm RD0971114-5R4611  |
 |
|
