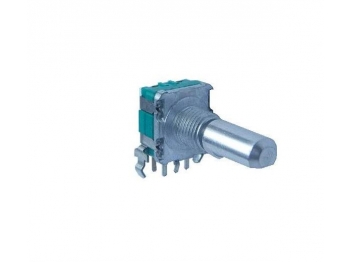

11mm 金屬軸迴轉式可變電阻器 RD117

Introduction



Inquire Now

11mm 金屬軸迴轉式可變電阻器 RD117

Features

Specification

FEATURE

‧Sound volume, quality and balance control for car audio system and other audio system.

APPLICATIONS
‧Low profile type with 0.5mm travel push-on switch.
‧Solder able with auto dipping.


COMMON SPECIFICATIONS

Items Specification
Total rotational angle General 300±5˚
Shaft moving type 300+10˚/-5˚
Rotational torque 20~250gf.cm
Total resistance (KΩ)  5.10.20,50,100,250
Total resistance tolerance ±20%
Rated power 0.05W
Resistance taper A, B, C, D, E, K, W, RD, M, N
Maximum operating Voltage   50V AC 10V DC
Rotation life 15,000 cycles


PRODUCTS NUMBERING SYSTEM

DIMENSIONS OF SHAFT

DIMENSIONS

Unit:mm
Vertical type
RD11700F
Vertical type
With 0.5mm Push-on SW
RD11710F
Horizontal type
RD11701F
Horizontal type
With 0.5mm Push-on SW
RD11711F
